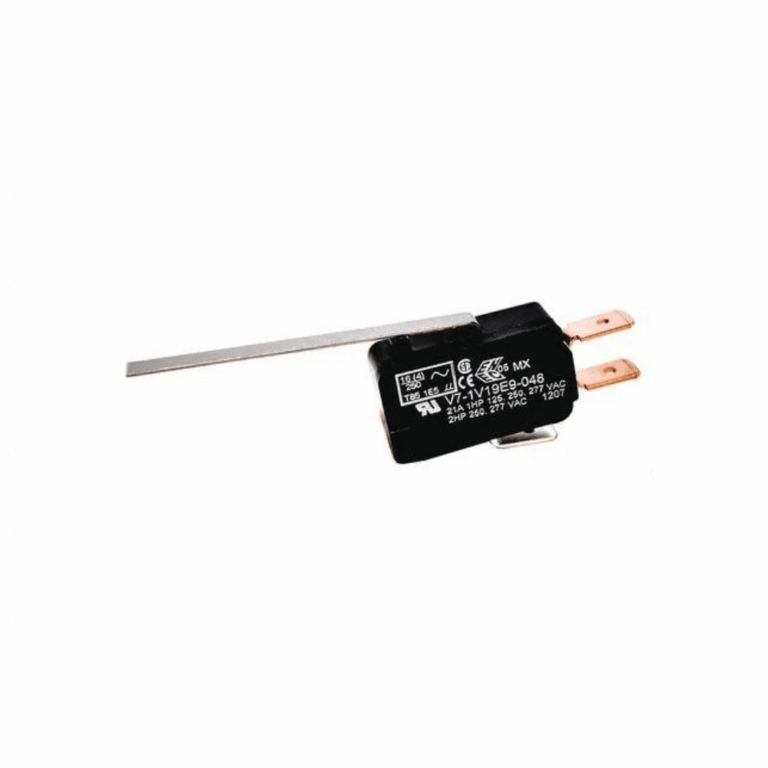

Mini SPDT Snap Action Switch
$8.69
Upgrade your mechanical control systems with the reliable Mini SPDT Snap Action Switch by Honeywell, designed specifically for Val-Co’s FUZE feed pan. This switch seamlessly combines durability and precision, making it an essential component for your electrical applications.
- Powerful Performance: Experience robust AC contact ratings of 21 A at 277V, ensuring reliability in various conditions.
- Versatile Temperature Range: Operating effectively from -40°F to 365°F, this switch adapts to both extreme heat and cold.
- User-Friendly Design: The lever actuator and quick connect electrical connection simplify installation and maintenance.
New style snap action switch for Val-Co’s FUZE mechanical control feed pan.
Honeywell switch. Honeywell part #: V7-1V19E9-048
- Actuator Type – Snap Action Switch: Lever, Long
- AC Contact Rating – Snap Action Switch: 21 A 1 HP 125 V, 250 V, 277
- Contact Form- Switches: SPDT
- Housing Material: PCT Polyester Thermoplastic
- Over Travel: 0.12″
- Operating Force: 1.94 oz.
- Operating Temperature Range: –40° F to 85° F; options for 347°F
- Voltage Rating: 250VAC
- Series: V7
- Release Force: 0.1 ozf
- Electrical Connection – Snap Action Switch: 1/4″ Quick Connect
- Watertight: No
- AC Contact Rating: 21A @ 277V
- Contact Form: 1 NO/ 1 NC
- Max operating temp: 365°F
- Minimum operating temp: -40°F
| Weight | .018 lbs |
|---|---|
| Dimensions | 2.9 × .875 × .625 in |
